Product Summary

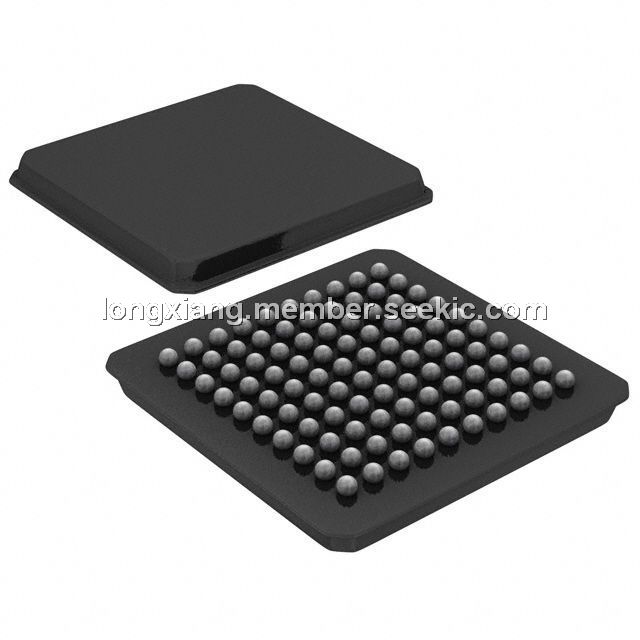

The TMS320F2801GGMA is a Logic Digital Power Pin. Application areas of the TMS320F2801GGMA include devices, are highly integrated, high performance solutions for demanding control.
Parametrics
TMS320F2801GGMA absolute maximum ratings: (1)Supply voltage range, VDDIO, VDD3VFL with respect to VSS: - 0.3 V to 4.6 V; (2)Supply voltage range, VDDA2, VDDAIO with respect to VSSA: - 0.3 V to 4.6 V; (3)Supply voltage range, VDD with respect to VSS: - 0.3 V to 2.5 V; (4)Supply voltage range, VDD1A18, VDD2A18 with respect to VSSA: - 0.3 V to 2.5 V; (5)Supply voltage range, VSSA2, VSSAIO, VSS1AGND, VSS2AGND with respect to VSS: - 0.3 V to 0.3 V.
Features
TMS320F2801GGMA features: (1)High-Performance Static CMOS Technology; (2)JTAG Boundary Scan Support; (3)High-Performance 32-Bit CPU (TMS320C28x); (4)On-Chip Memory; (5)Boot ROM (4K x 16); (6)Clock and System Control.

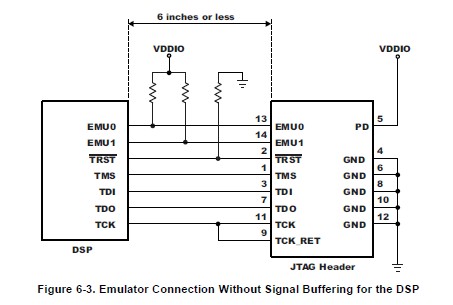

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320F2801GGMA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) 32-Bit Digital Sig Controller w/Flash |
Data Sheet |
|
|
||||||||||||
