Product Summary

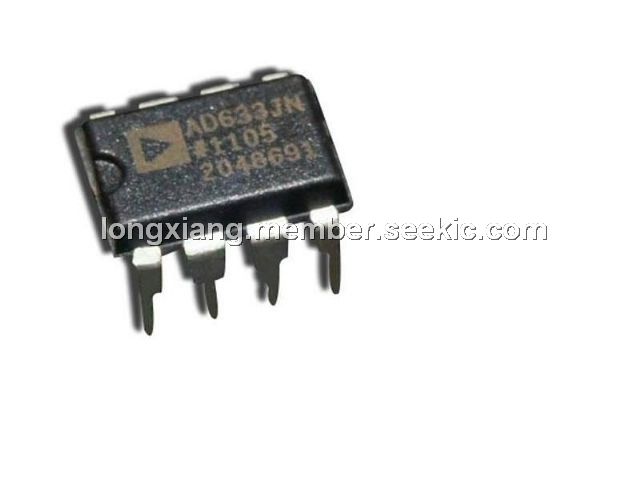

The AD633JN is a functionally complete, four-quadrant, analog multiplier. It includes high impedance, differential X and Y inputs and a high impedance summing input (Z). The low impedance output voltage is a nominal 10 V full scale provided by a buried Zener. The AD633JN is the first product to offer these features in modestly priced 8-lead plastic DIP and SOIC packages. The AD633JN is laser calibrated to a guaranteed total accuracy of 2% of full scale. Nonlinearity for the Y-input is typically less than 0.1% and noise referred to the output is typically less than 100 mV rms in a 10 Hz to 10 kHz bandwidth. A 1 MHz bandwidth, 20 V/ms slew rate, and the ability to drive capacitive loads make the AD633JN useful in a wide variety of applications where simplicity and cost are key concerns. The AD633JN versatility is not compromised by its simplicity. The Z-input provides access to the output buffer amplifier, enabling the user to sum the outputs of two or more multipliers, increase the multiplier gain, convert the output voltage to a current, and configure a variety of applications.

Parametrics

AD633JN absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Internal Power Dissipation:500 mW; (3)Input Voltages: ±18 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range:–65℃ to +150℃; (6)Operating Temperature Range:0℃ to +70℃; (7)Lead Temperature Range (Soldering 60 sec): +300℃; (8)ESD Rating:1000 V.

Features

AD633JN features: (1)Four-Quadrant Multiplication; (2)Low Cost 8-Lead Package; (3)Complete—No External Components Required; (4)Laser-Trimmed Accuracy and Stability; (5)Total Error Within 2% of FS; (6)Differential High Impedance X and Y Inputs; (7)High Impedance Unity-Gain Summing Input; (8)Laser-Trimmed 10 V Scaling Reference.

Diagrams

AD633JN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD633JN
AD633JN

IC ANALOG MULTIPLIER 8-DIP
Data Sheet
0-50: $5.10
AD633JNZ
AD633JNZ

IC ANALOG MULTIPLIER 8-DIP
Data Sheet
0-1: $5.50
1-10: $4.95
10-25: $4.51
25-100: $4.07
100-250: $3.74
250-500: $3.41
500-1000: $2.97
1000-2500: $2.93
