Product Summary
The PCF8563P is a CMOS real-time clock/calendar optimized for low power consumption. A programmable clock output, interrupt output and voltage-low detector are also provided. All address and data of PCF8563P are transferred serially via a two-line bidirectional I2C-bus. Maximum bus speed is 400 kbits/s. The built-in word address register is incremented automatically after each written or read data byte.
Parametrics
PCF8563P absolute maximum ratings: (1)supply voltage, VDD: -0.5 to +6.5V; (2)supply current, IDD: -50 to +50mA; (3)input voltage on inputs SCL and SDA, VI: -0.5 to 6.5V; (4)input voltage on input OSCI: -0.5 to VDD+0.5V; (5)output voltage on outputs CLKOUT and INT, VO: -0.5 to 6.5V; (6)DC input current at any input, Ii: -10 to +10mA; (7)DC output current at any output, IO: -10 to +10mA; (8)total power dissipation, Ptot: -300mW; (9)operating ambient temperature,Tamb: -40 to +85℃; (10)storage temperature, Tstg: -65 to +150℃.
Features
PCF8563P features: (1)Provides year, month, day, weekday, hours, minutes and seconds based on 32.768 kHz quartz crystal; (2)Century flag; (3)Wide operating supply voltage range: 1.0 to 5.5 V; (4)Low back-up current; typical 0.25 mA at VDD = 3.0 V and Tamb = 25 ℃; (5)400 kHz two-wire I2C-bus interface (at VDD = 1.8 to 5.5 V); (6)Programmable clock output for peripheral devices: 32.768 kHz, 1024 Hz, 32 Hz and 1 Hz; (7)Alarm and timer functions; (8)Voltage-low detector; (9)Integrated oscillator capacitor; (10)Internal power-on reset; (11)I2C-bus slave address: read A3H; write A2H; (12)Open drain interrupt pin.

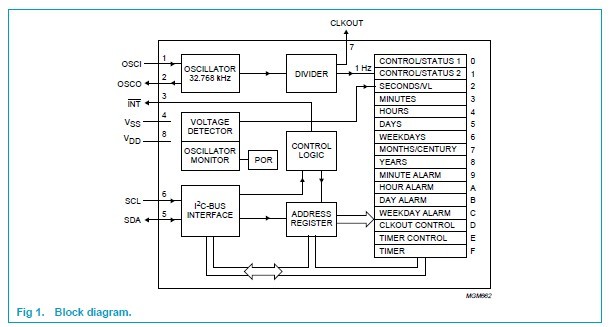

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCF8563P/F4,112 |
NXP Semiconductors |
Real Time Clock ULTRA LOW POWER |
Data Sheet |
|
|
||||||||||||
|
PCF8563PN |
NXP Semiconductors |
Real Time Clock ULTRA LOW POWER CLOCK CALENDAR |
Data Sheet |
