ADUC843BSZ62-5

Product Summary

The ADUC843BSZ62-5 is a complete smart transducer front end. It integrates a high performance selfcalibrating multichannel ADC, a dual DAC, and an optimized single-cycle 20 MHz 8-bit MCU (8051 instruction set compatible) on a single chip. The ADUC843BSZ62-5 is an optimized 8052 core offering up to 20 MIPS peak performance. Three different memory options are available offering up to 62 kBytes of nonvolatile Flash/EE program memory. Four kBytes of nonvolatile Flash/EE data memory, 256 bytes RAM, and 2 kBytes of extended RAM are also integrated on-chip. The applications of the ADUC843BSZ62-5 include Optical networking-laser power control, Base station systems, Precision instrumentation, smart sensors, Transient capture systems and DAS and communications systems.

Parametrics

ADUC843BSZ62-5 absolute maximum ratings: (1)AVDD to DVDD: –0.3 V to +0.3 V; (2)AGND to DGND: –0.3 V to +0.3 V; (3)DVDD to DGND, AVDD to AGND: –0.3 V to +7 V; (4)Digital Input Voltage to DGND: –0.3 V to DVDD + 0.3 V; (5)Digital Output Voltage to DGND: –0.3 V to DVDD + 0.3 V; (6)VREF to AGND: –0.3 V to AVDD + 0.3 V; (7)Analog Inputs to AGND: –0.3 V to AVDD + 0.3 V; (8)Operating Temperature Range, Industrial: –40℃ to +85℃; (9)Storage Temperature Range: –65℃ to +150℃; (10)Junction Temperature: 150℃; (11)θJA Thermal Impedance (ADuC84xBS): 90℃/W; (12)Lead Temperature, Soldering, Vapor Phase (60 sec): 215℃; Infrared (15 sec): 220℃.

Features

ADUC843BSZ62-5 features: (1)Increased performance: Single-cycle 20 MIPS 8052 core; High speed 420 kSPS 12-bit ADC; (2)Increased memory: Up to 62 kBytes on-chip Flash/EE program memory; 4 kBytes on-chip Flash/EE data memory; (3)In-circuit reprogrammable: Flash/EE, 100 year retention, 100 kCycle endurance; 2304 bytes on-chip data RAM; (4)Smaller package: 8 mm × 8 mm chip scale package; 52-lead PQFP.pin compatable upgrade; (5)Analog I/O: 8-channel, 420 kSPS high accuracy, 12-bit ADC; On-chip, 15 ppm/℃ voltage reference; DMA controller, high speed ADC-to-RAM capture; Two 12-bit voltage output DACs1; Dual output PWM DACs; On-chip temperature monitor function; (6)8052 based core: 8051 compatible instruction set (20 MHz max); (7)High performance single-cycle core: 32 kHz external crystal, on-chip programmable PLL; 12 interrupt sources, 2 priority levels; Dual data pointers, extended 11-bit stack pointer; (8)On-chip peripherals: Time interval counter (TIC); UART, I2CR, and SPIR Serial I/O; Watchdog timer (WDT); Power supply monitor (PSM); (9)Power: Normal: 4.5 mA @ 3 V (core CLK = 2.098 MHz); Power-down: 10 μA @ 3 V2; (10)Development tools: Low cost, comprehensive development system; incorporating nonintrusive single-pin emulation; IDE based assembly and C source debugging.

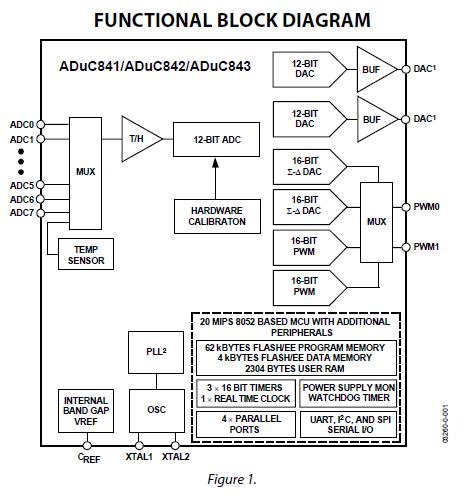

Diagrams
