Product Summary

The SMBJ5.0CA is a Silicon Avalanche Diode. The SMBJ5.0CA has 600W Surface Mount Transient Voltage Supressors. The SMBJ5.0CA features voltage ratings from 5 to 440 volts and low profile package.

Parametrics

SMBJ5.0CA absolute maximum ratings: (1)Peak pulse power Dissipation on 10/1000μs waveform: Min 600Watts; (2)Peak pulse current of on 10\1000μs waveform: SEE TABLE 1Amps; (3)Peak forward Surge Current, 8.3ms Single Half SIne Wave Superimposed on Rated Load, (JEDEC Method): 100Amps; (4)Operating junction and Storage Temperature Range: -55 to +150°C.

Features

SMBJ5.0CA features: (1)RoHS compliant; (2)Voltage ratings from 5 to 440 volts; (3)For surface mounted applications in order to optimize board space; (4)Low profile package; (5)Built-in strain relief; (6)Glass passivated junction; (7)Low lead inductance; (8)Excellent clamping capability; (9)Repetition Rate (duty cycle): 0.01%; (10)Fast response time: typically less than 1.0ps from 0 Volts to BV for unidirectional types; (11)Typical IR less than 1μmA above 10V; (12)High Temperature soldering: 250°C/10seconds at terminals.

Diagrams

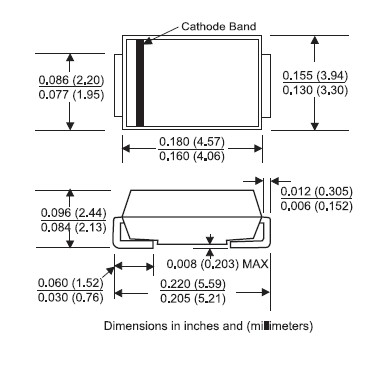

SMBJ5.0CA block diagram
