Product Summary
The ADSP-TS201SABPZ-060 is an ultrahigh performance, static superscalar processor optimized for large signal processing tasks and communications infrastructure. The ADSP-TS201SABPZ-060 DSP combines very wide memory widths with dual computation blocks—supporting floating-point (IEEE 32-bit and extended precision 40-bit) and fixed-point (8-, 16-, 32-, and 64-bit) processing—to set a new standard of performance for digital signal processors. The ADSP-TS201SABPZ-060 executes up to four instructions each cycle, performing 24 fixed-point (16-bit) operations or six floating-point operations.
Parametrics
ADSP-TS201SABPZ-060 absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDD):–0.3 V to +1.4 V; (2)Analog (PLL) Supply Voltage (VDD_A):–0.3 V to +1.4 V; (3)External (I/O) Supply Voltage (VDD_IO):–0.3 V to +3.5 V; (4)External (DRAM) Supply Voltage (VDD_DRAM):–0.3 V to +2.1 V; (5)Input Voltage1:–0.63 V to +3.93 V; (6)Output Voltage Swing: –0.5 V to VDD_IO+0.5 V; (7)Storage Temperature Range: –65 to +150℃.
Features
ADSP-TS201SABPZ-060 features: (1)Up to 600MHz, 1.67ns instruction cycle rate; (2)24Mbits of internal—on-chip—DRAM memory; (3)25mm × 25mm (576-ball) thermally enhanced ball grid array package; (4)Dual computation blocks—each containing an ALU, a multiplier, a shifter, a register file, and a communications logic unit (CLU); (5)Dual-integer ALUs, providing data addressing and pointer manipulation; (6)Integrated I/O includes 14-channel DMA controller, external port, four link ports, SDRAM controller, programmable flag pins, two timers, and timer expired pin for system integration; (7)1149.1 IEEE-compliant JTAG test access port for on-chip emulation; (8)Single-precision IEEE 32-bit and extended-precision 40-bit floating-point data formats and 8-, 16-, 32-, and 64-bit fixed-point data formats .

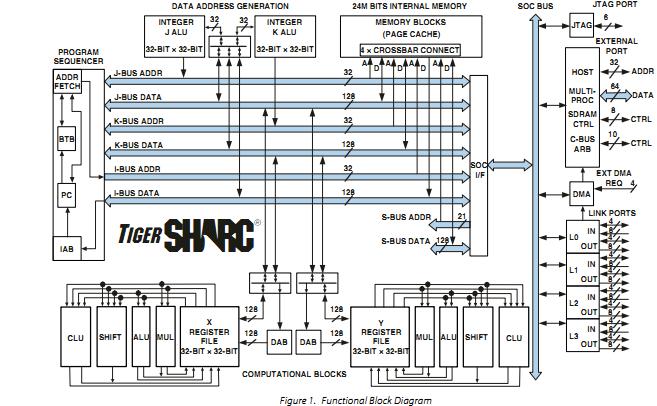

Diagrams
 |
