AD9858BSVZ

Product Summary

The AD9858BSVZ is a direct digital synthesizer (DDS) featuring a 10-bit digital-to-analog converter (DAC) operating up to 1 GSPS. The AD9858BSVZ uses advanced DDS technology coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analog output sine wave at up to 400 MHz. The AD9858BSVZ is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into the AD9858BSVZ via parallel (8-bit) or serial loading formats. The AD9858BSVZ ontains an integrated charge pump (CP) and phase frequency detector (PFD) for synthesis applications requiring the combination of a high speed DDS along with phase-locked loop (PLL) functions. An analog mixer is also provided on chip for applications requiring the combination of a DDS, PLL, and mixer, such as frequency translation loops and tuners. The AD9858BSVZ also features a divide-by-2 on the clock input, allowing the external reference clock to be as high as 2 GHz. The AD9858BSVZ is specified to operate over the extended industrial temperature range of –40℃ to +85℃.

Parametrics

AD9858BSVZ absolute maximum ratings: (1)Maximum Junction Temperature: 150℃; (2)AVDD: 4V; (3)DVDD: 4V; (4)CPVDD: 6V; (5)Digital Input Voltage Range: -0.7V to +VDD; (6)Digital Output Current: 5mA; (7)Storage Temperature Range: -65℃ to +150℃; (8)Operating Temperature Range: -40℃ to +85℃.

Features

AD9858BSVZ features: (1)1 GSPS internal clock speed; (2)Up to 2 GHz input clock (selectable divide-by-2); (3)Integrated 10-bit DAC; (4)Excellent phase noise and SFDR; (5)32-bit programmable frequency register; (6)Simplified 8-bit parallel and SPI serial control interface; (7)Automatic frequency sweeping capability; (8)4 frequency profiles; (9)3.3 V power supply; (10)Power dissipation: 2 W typical; (11)Integrated programmable charge pump and phase frequency detector with fast lock circuit; (12)Isolated charge pump supply up to 5 V; (13)Integrated 2 GHz mixer.

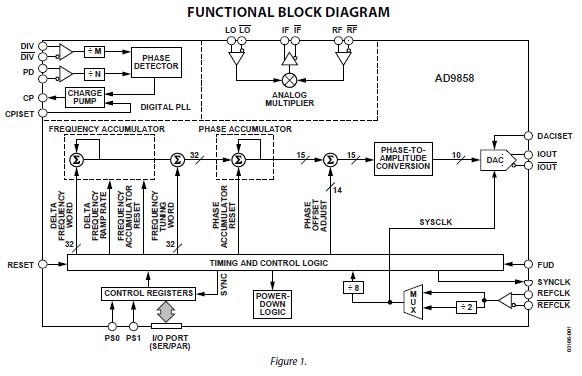

Diagrams
