Product Summary

The ADG511BRZ is a Quad SPST Switch. It features low, well-controlled on resistance and wide analog signal range, making them ideal for precision analog signal switching. The applications of the ADG511BRZ are Battery-Powered Instruments, Single Supply Systems, Remote Powered Equipment, 5 V Supply Systems, Computer Peripherals such as Disk Drives, Precision Instrumentation, Audio and Video Switching, Automatic Test Equipment, Precision Data Acquisition, Sample Hold Systems, Communication Systems.

Parametrics

ADG511BRZ absolute maximum ratings: (1)VDD to VSS:44 V; (2)VDD to GND:–0.3 V to +25 V; (3)VSS to GND: +0.3 V to –25 V; (4)Analog, Digital Inputs: VSS – 2 V to VDD + 2 V or; (5)30 mA, Whichever Occurs First: Continuous Current, S or D:30 mA, Peak Current, S or D:100 mA (Pulsed at 1 ms, 10% Duty Cycle max); (6)Operating Temperature Range: Industrial (B Version):–40°C to +85°C, Extended (T Version):–55°C to +125°C; (7)Storage Temperature Range:–65°C to +150°C; (8)Junction Temperature:150°C.

Features

ADG511BRZ features: (1)+3 V, +5 V or ±5 V Power Supplies; (2)Ultralow Power Dissipation (<0.5 uW); (3)Low Leakage (<100 pA); (4)Low On Resistance (<50 Ω); (5)Fast Switching Times; (6)Low Charge Injection; (7)TTL/CMOS Compatible; (8)16-Lead DIP or SOIC Package.

Diagrams

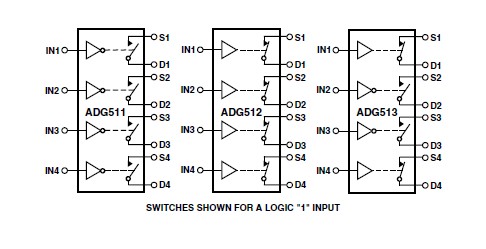

ADG511BRZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG511BRZ
ADG511BRZ

IC SWITCH QUAD SPST 16SOIC
Data Sheet
0-1: $3.51
1-10: $3.13
10-100: $2.57
100-250: $2.32
250-500: $2.08
500-1000: $1.75
1000-2500: $1.67
ADG511BRZ-REEL
ADG511BRZ-REEL

IC SWITCH QUAD SPST 16SOIC
Data Sheet
0-2500: $1.67
ADG511BRZ-REEL7
ADG511BRZ-REEL7

IC SWITCH QUAD SPST 16SOIC
Data Sheet
0-1000: $1.75
