Product Summary
The HFBR-1521Z is a 5 MBd High Performance Link Transmitter. The Versatile Link series is a complete family of fiber optic link components for applications requiring a low cost solution. The HFBR-1521Z include transmitters, receivers, connectors and cable specified for easy design. The HFBR-1521Z is ideal for solving problems with voltage isolation/insula tion, EMI/RFI immunity or data security. The HFBR-1521Z optical link design is simplified by the logic compat ible receivers and complete specifi-cations for each component.
Parametrics
HFBR-1521Z absolute maximum ratings: (1)Storage Temperature:–40 +85 °C; (2)Operating Temperature: –40 +85 °C; (3)Lead Soldering Cycle: 260 °C 10 sec; (4)Forward Input Current: 1000 mA 80mA; (5)Reverse Input Voltage: 5 V.
Features
HFBR-1521Z features: (1)RoHS-compliant; (2)Low cost fiber optic components; (3)Enhanced digital links: dc-5 MBd; (4)Extended distance links up to 120 m at 40 kBd; (5)Low current link: 6 mA peak supply current; (6)Horizontal and vertical mounting; (7)Interlocking feature; (8)High noise immunity; (9)Easy connectoring: simplex, duplex, and latching connectors; (10)Flame retardant; (11)Transmitters incorporate a 660 nm red LED for easy visibility; (12)Compatible with standard TTL circuitry.

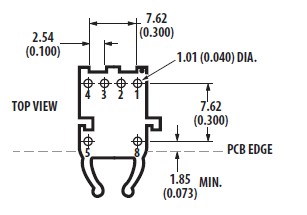

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFBR-1521Z |
Avago Technologies |
Fiber Optic Transmitters, Receivers, Transceivers Versatile Link Horiz 5MBd Tx RoHS |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
HFBR-0310 |
Avago Technologies |
Fiber Optic Development Tools 155 MBd Txcvr Evaluation Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-0310Z |
Avago Technologies |
Fiber Optic Development Tools 125MBd 1300nm Evaluation Kit |
Data Sheet |
|
|
||||||||||||
|
HFBR-0319 |
Avago Technologies |
Fiber Optic Development Tools 1X9 Fiber Optic Evaluation Kit |
Data Sheet |
|
|
||||||||||||
|
HFBR-0400 |
Avago Technologies |
Fiber Optic Development Tools SMA Fiber Optic Evaluation Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-0410 |
Avago Technologies |
Fiber Optic Development Tools ST Fiber Optic Evaluation Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-0410Z |
Avago Technologies |
Fiber Optic Development Tools DC-5MBd 820nm Evaluation Kit |
Data Sheet |
|
|
||||||||||||
