Product Summary
The SST39VF1601-70-4I-EKE is a CMOS Multi-Purpose Flash Plus (MPF+) manufactured with SST’s proprietary,high performance CMOS Super Flash technology. The SST39VF1601-70-4I-EKE split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF1601-70-4I-EKE writes (Program or Erase) with a 2.7-3.6V power supply. These devices conform to JEDEC standard pinouts for x16 memories.
Parametrics
SST39VF1601-70-4I-EKE absolute maximum ratings: (1)Temperature Under Bias: -55°C to +125°C; (2)Storage Temperature: -65°C to +150°C; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V; (6)Package Power Dissipation Capability (Ta = 25°C): 1.0W; (7)Surface Mount Lead Soldering Temperature (3 Seconds): 240°C; (8)Output Short Circuit Current1: 50 mA.
Features
SST39VF1601-70-4I-EKE features: (1)Organized as 1M x16: SST39VF1601/1602; (2)Single Voltage Read and Write Operations：2.7-3.6V; (3)Superior Reliability：Endurance: 100,000 Cycles (Typical); (4)Low Power Consumption (typical values at 5 MHz)：Active Current: 9 mA (typical); (5)Hardware Block-Protection Input Pin：Top Block-Protection (top 32 KWord); (6)Sector-Erase Capability：Uniform 2 KWord sectors; (7)Block-Erase Capability：Uniform 32 KWord blocks; (8)Chip-Erase Capability; (9)Erase-Suspend/Erase-Resume Capabilities; (10)Hardware Reset Pin.

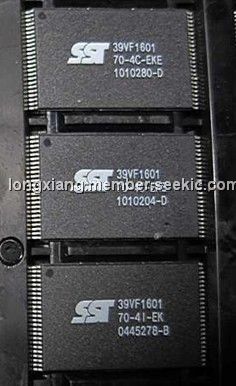

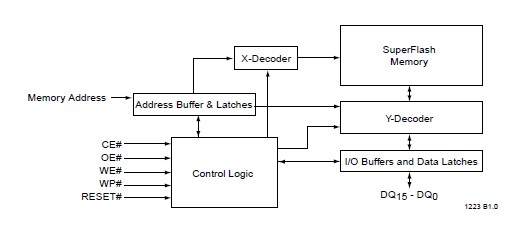

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST39VF1601-70-4I-EKE |
Microchip Technology |
Flash 16M (1Mx16) 70ns Industrial Temp |
Data Sheet |
|
|
||||||||||||
|
SST39VF1601-70-4I-EKE-T |
Microchip Technology |
Flash 2.7 to 3.6V 16Mbit Multi-Purpose Flash |
Data Sheet |
|
|
||||||||||||
